Thông tin chi tiết sản phẩm:
|

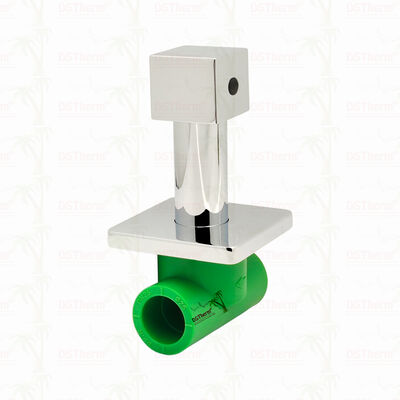

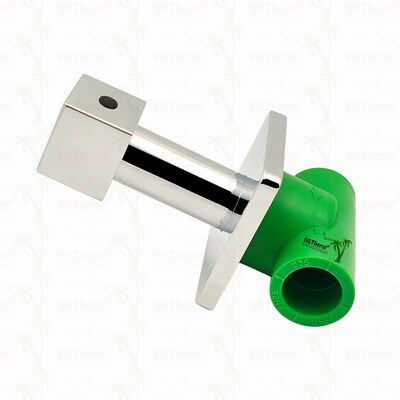

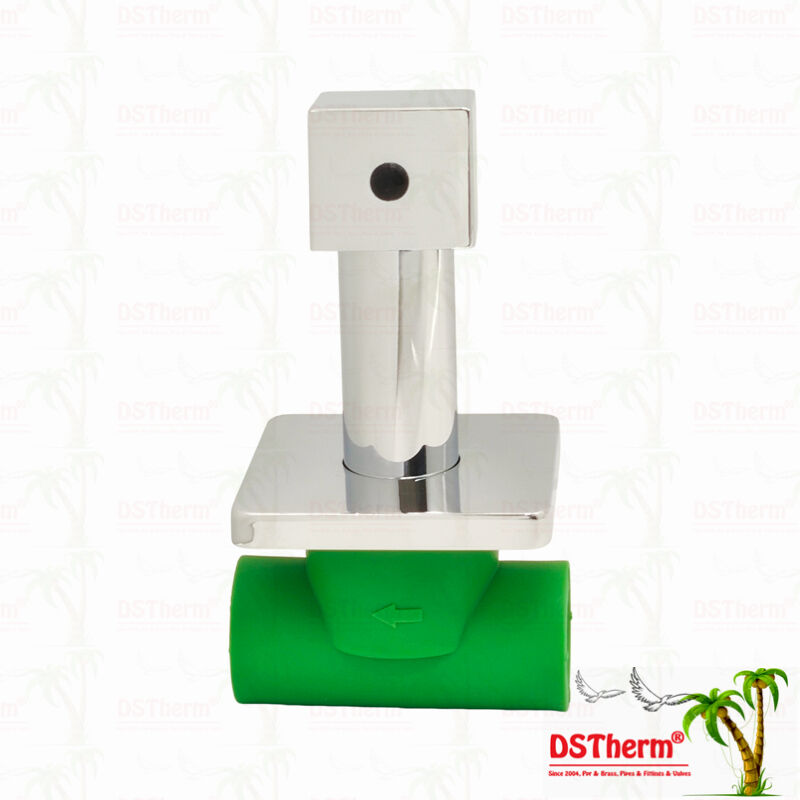

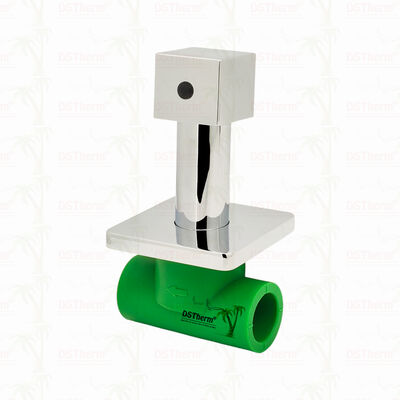

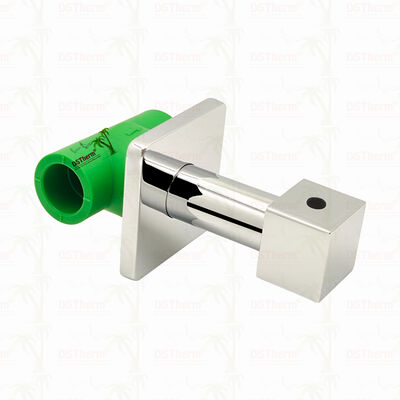

| Tên sản phẩm: | Van dừng PPR có tay cầm hình khối | Màu sắc: | Xám, Xanh, Đen, theo yêu cầu |
|---|---|---|---|
| Kích cỡ: | 20-32mm | Quá trình: | ép phun |
| Vật liệu: | PPR + Hộp mực bằng đồng thau + Mạ Chrome | chi tiết đóng gói: | Tiêu chuẩn xuất khẩu đóng gói hoặc theo yêu cầu của khách hàng |
| Ứng dụng: | Hệ thống nước nóng lạnh | Thời gian giao hàng: | Được vận chuyển trong 35 ngày sau khi thanh toán |
Specification
| PPR Stop Valve With Brass Cartridge | Size |
 |
20mm |
| 25mm | |
| 32mm |
We have Stop Valve with specifications ranging from 20mm to 32mm. You can also customize different specifications, color and materials.
Main Components of a Stop Valve
Stop Valve vs. Gate Valve – Comparison
| Stop Valve | Gate Valve | |
| Main Function | Shut-off and throttling / regulating | Primarily for full open or full close, not for throttling |
| Flow Path Shape | Tortuous, S-shaped flow path | Straight, unobstructed flow passage |
| Flow Resistance | High (large pressure drop) | Low (small pressure drop) |
| Installation Direction | Directional (media must enter from below and exit above) | Non-directional (can be installed in either flow direction) |
| Appearance | Longer in length and shorter in height for same nominal size | Shorter in length and taller in height for same nominal size |
| Applicable Size | Mainly used for small bore sizes (e.g., DN ≤ 50 mm) | Commonly used for large bore sizes (e.g., DN ≥ 50 mm) |
Applications
Our advantages
1). Over 20 Years' Experience in production
2). Accept OEM Order
3). ISO9001 approved
4). We use All New raw material in products
5). Sufficient products with complete specifications for your choice
We will be your better choice!
